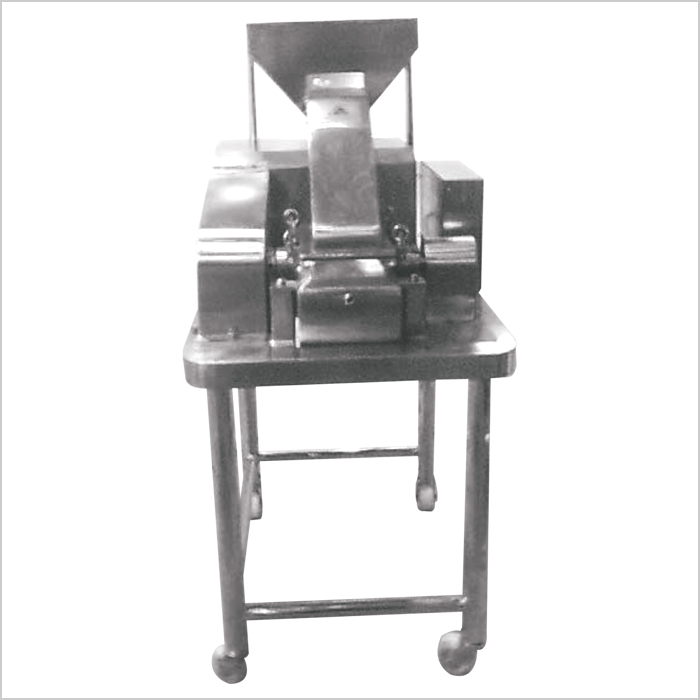

Communiting Mill
The Comminuting- mill is used in high speed size reduction, granulation, pulverization, mixing, shredding, etc. of wide range of dry and damp materials with out any special attachment.
Mill has been specifically designed for wet and dry granulation, pulverization or dispersion of products or ingredients found in the Pharmaceutical, Chemical and Food Industries.
Product fed in the hopper slides down to the enclosed chamber, where it is milled in between horizontal beaters and screen to the required mesh/micron size which can be collected at output container.
Knife edge is used for coarse or large particles and impact or flat edge for finer particles. High speed is used for grinding, low speed for coarser particles. A wide range of screens is available for various process needs.Quality and output depends upon the three main variables : Beaters shape (knife / impact forward) , Speed, Product / Particle size to be processed.
- Available in STD/GMP models
- Construction SS 304 / 316 / 316L
- Variable Speed drive optional
- Flame proof motor, push button station and limit switch.
- Variety of interchangeable screens for differing applications.
- Widely Used in Pharmaceutical, Chemical and food industries, the Cosmetics, Confectionery, Fertilizer, Insecticides, Detergents and Electroflux Industries.
MODELS : 3 hp : 10-100 kg/hr , 5 HP : 100-200 kg/hr, 7. 5 HP : 300-500 kg/hr.
